lítio Ion Battery Cell 18650 da baixa temperatura de 3.7v 3500mah

lítio Ion Battery Cell 18650 da baixa temperatura de 3.7v 3500mah
lítio Ion Battery Cell 18650 da baixa temperatura de 3.7v 3500mah lítio Ion Battery Cell 18650 da baixa temperatura de 3.7v 3500mah

Imagem Grande :  lítio Ion Battery Cell 18650 da baixa temperatura de 3.7v 3500mah

Detalhes do produto:
Lugar de origem: CHINA
Certificação: UN38.3, MSDS, IEC62133, RoHS
Número do modelo: ICR18650
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1000pieces
Detalhes da embalagem: embalagem maioria
Tempo de entrega: dentro de 15days
Termos de pagamento: T/T
Habilidade da fonte: diário 100 ' 000Pieces

lítio Ion Battery Cell 18650 da baixa temperatura de 3.7v 3500mah

descrição
Tipo da bateria: Lítio Ion Battery Cell modelo: ICR18650
Tensão nominal: 3.7V Capacidade nominal: 3500mAh
Vida de ciclo: 500times Descarregando a taxa: 1C
Material do ânodo: Cobaltate do lítio Prazo de execução: 15days
Temperatura de trabalho: -40-60℃ Temperatura de carregamento: 0 ~ 60℃
Realçar:

lítio Ion Battery da baixa temperatura 3500mah

,

lítio Ion Battery da baixa temperatura 3.7v

,

lítio Ion Battery Cell 18650

Low Temperature -40℃ Battery Lithium Ion Rechargeable Battery Cell 18650 3.7v 3500mah



Items

Specifications

Remarks

1

Rated charge

Limiting 1.7A and constant 4.2V charge for 2.5h or 100mA at 23 oC.

2

Rated discharge

Constant 0.68A discharge until 2.5V at 23 oC.

3

Rated capacity

3.35Ah (Minimum) 3.45Ah (Typical)

Rated discharge capacity after rated charge.

4

Nominal voltage

3.6V

Mean voltage during rated discharge after rated charge.

5

Shipping voltage

≥ 3.45V

Nominal approximate state of charge ≤ 30%.

6

Internal resistance

≤ 35mΩ

Fresh cell measured by AC impedance at 1kHz

7

End of charge voltage

4.20  0.05V



8

End of discharge voltage

2.5V

Discharge voltage for determination of rated capacity.

9

Charging time

150 min

Rated charge.

10

Maximum charging current

1.7 A

See Section 4.14

Maximum discharging current

10 A

Cycle life is reduced at high rates.

11

Operating temperature

Charging

0 ~ 60 oC

See Section 4.14

Discharging

-40 ~ 60 oC



12

Storage temperature for shipping cell

< 35 oC

Recommended temperature less than 23 oC for long term storage.

13

Shelf life

1 year

See Section 5.4.

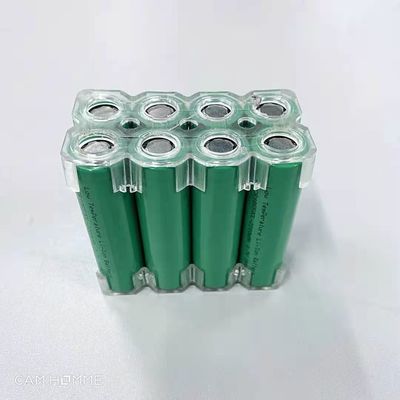

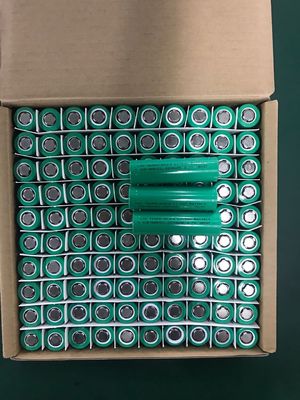

Detailed images for Low temperature lithium battery cells



lítio Ion Battery Cell 18650 da baixa temperatura de 3.7v 3500mah 0lítio Ion Battery Cell 18650 da baixa temperatura de 3.7v 3500mah 1

Lithium ion battery Low Temperature -40℃ discharge performance



Items

Condition

Capacity

Test Method

1

Discharge Capacity at 23 oC

0.68 A

≥3.35Ah

Discharge capacity to 2.5V after rated charge

1.7 A

≥3.30Ah

Discharge capacity to 2.5V after rated charge

3.4 A

≥3.20Ah

Discharge capacity to 2.5V after rated charge

6A

≥3.10Ah

Discharge capacity to 2.5V after rated charge

10 A

≥3.00Ah

Discharge capacity to 2.5V after rated charge

2

Temperature Discharge Capacity at 0.68A

45 ℃

≥3.35Ah

Discharge capacity to 2.5V after rated charge at 23 o

0 ℃

≥3.10Ah

Discharge capacity to 2.5V after rated charge at 23 oC

-20

≥2.70Ah

Discharge capacity to 2.5V after rated charge at 23 oC.

-30

≥2.00Ah

Discharge capacity to 2.0V after rated charge at 23 oC.



Customized lithium rechargeable battery packs



lítio Ion Battery Cell 18650 da baixa temperatura de 3.7v 3500mah 2

Cautions and Warnings for Using Lithium Battery cells

1. Don’t immerse the battery in water.

2. Don’t use and leave the battery near a heat source such as fire or heater.

3. When charging, use a battery charger specifically for that purpose.

4. Don’t reverse the positive and negative terminals.

5. Don’t connect the battery to an electrical outlet directly.

6. Don’t discard the battery in fire or heater.

7. Don’t connect the positive and negative terminal directly with metal objects.

8. Don’t transport and store the battery together with metal objects such as necklaces, hairpins.

9. Don’t strike, throw or trample the battery.

10. Don’t pierce the battery with a nail or other sharp object.

Other lithium ion cylindrical battery cell on sale:

Lithium ion battery cells list
Model No. Nominal Voltage Typical Capacity Size Charge Rate Discharging Rate Weight(g)
ICR14500 3.7V 600mah 13.9×48.5±0.3 0.2-1C 0.2-2C 19.5
ICR14500 3.7V 750mah 13.9×48.5±0.3 0.2-1C 0.2-2C 20
ICR14500 3.7V 800mah 13.9×48.5±0.3 0.2-1C 0.2-2C 20.5
ICR18500 3.7V 1300mah 18.0×49.7±0.2 0.2-1C 0.2-2C 32
ICR18500J 3.7V 1400mah 18.0×49.7±0.2 0.2-1C 0.2-2C 31
ICR18500 3.7V 1600mah 18.0×49.7±0.2 0.2-1C 0.2-2C 32
ICR18650 3.7V 2200mah 18.0×65.2±0.2 0.2-1C 0.2-2C 40
ICR18650 3.7V 2600mah 18.0×65.2±0.2 0.2-1C 0.2-2C 45
ICR18650 3.7V 3000mah 18.0×65.2±0.2 0.2-1C 0.2-2C 48
ICR18650 3.7V 3400mah 18.0×65.2±0.2 0.2-1C 0.2-2C 50
ICR26650 3.7V 4500mah 26.3×65.0±0.5 0.2-1C 0.2-2C 80
ICR26650 3.7V 5000mah 26.3×65.0±0.5 0.2-1C 0.2-2C 85
ICR18650P 3.7V 2600mah 18.0×65.2±0.2 0.2-1C 5C 45
